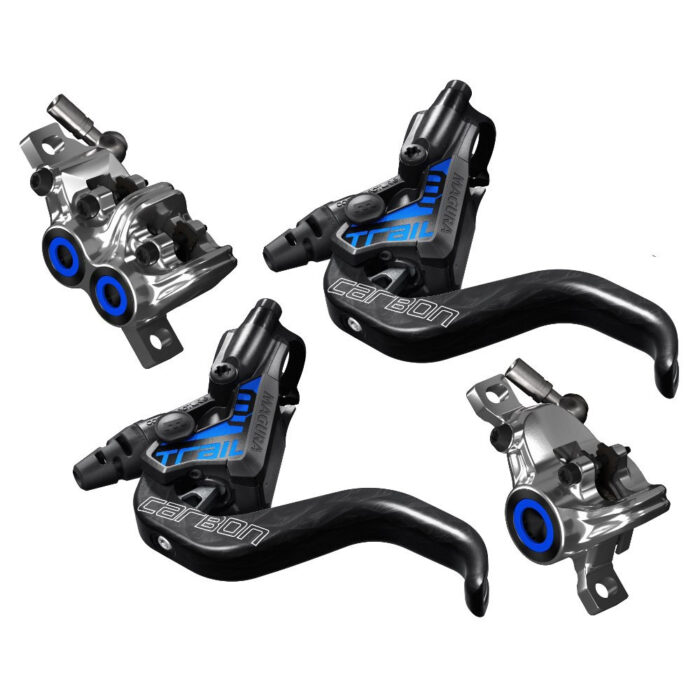

Magura’s definition of trail braking performance – 4 pistons in the front for maximum braking power, 2 pistons in the rear for perfect modulation. Thanks to the 1-finger HC Carbolay® lever blade the whole brake just weighs 230 grams (average). E-Bike ready.
100 % TRAIL-PERFORMANCE
The outstanding performance of the MT7 with the low weight of the MT8 results in excellent trail performance.
LIGHTWEIGHT
Weighing in at 230 grams (average) the MT Trail SL is 8 % lighter than the MT7 and just 15 % heavier than the MT8 (200 grams), but still provides 100 % trail performance.
EYECATCHER
Through the Carbolay® lever and handlebar clamp, the MT Trail SL has a shiny deep-black carbon design on the handlebars and high-gloss chrome on the brake caliper.
Features of Magura MT Trail SL
full-carbon brake lever
ergonomic 1-finger lever blade
forged 4-piston aluminum brake caliper at front
forged 2-piston aluminum brake caliper at rear
magnetiXchange brake pistons for easy brake pad replacement
weighs only 220 / 240 grams (rear / front)
compatible with all Magura Storm and Storm SL brake discs
Technologies of the Magura MT Trail SL disc brake
Carbotecture® SL:
Compared to Magura's conventional Carbotecture® material, a mixture of high-tech polymers and carbon or glass fibers, for Carbotecture® SL medium-length carbon fibers are integrated into the polyamides instead of short ones in order to further increase resistance and reduce weight at the same time. Carbotecture® SL offers significant advantages over the classic lightweight material aluminum: It is just as tensile and break-resistant with more than 50 % less weight.
Weight Ratio Performance:
Magura brakes are characterized by their high degree of thermal resistance, achieved through optimal weight allocation. This is optimal material usage and best-in-class lightweight construction where it's really needed.
magnetiXchange:
Magnetic pistons fit perfectly into the brake caliper, guaranteeing quick and easy brake pad replacement.
Shift Mix (optional):
With help of the optional Magura's Shift Mix lever clamps Shimano (Shiftmix 1 + 2 / I-Spec I + II) and SRAM (Shiftmix 3 / X9, X0, XX) triggers can be mounted directly to the brake levers in order to accomplish a tidier cockpit.
OPD: Caliper in one-piece design.
EBT | Easy Bleed Technology: Easy and fast bleeding.
Notes: The brake is delivered filled and bled. The brake hose can be easily cut to the required length. Postmount or IS2000 adapters as well as a disc rotor are not included in delivery. These parts are sold separately. Please pay attention to the maximum disc diameter recommended for your fork / frame.
Brake hose: FW: 1000 mm | RW: 2000 mm (each cuttable)
Brake lever: 1-finger HC lever
Flip Flop design
reach adjustment with 3 mm allen key (SW3)
Disc: recommended: Storm HC, Storm CL (not included)
Included in delivery: brake front + rear, filled and bled
without discs and adapters
