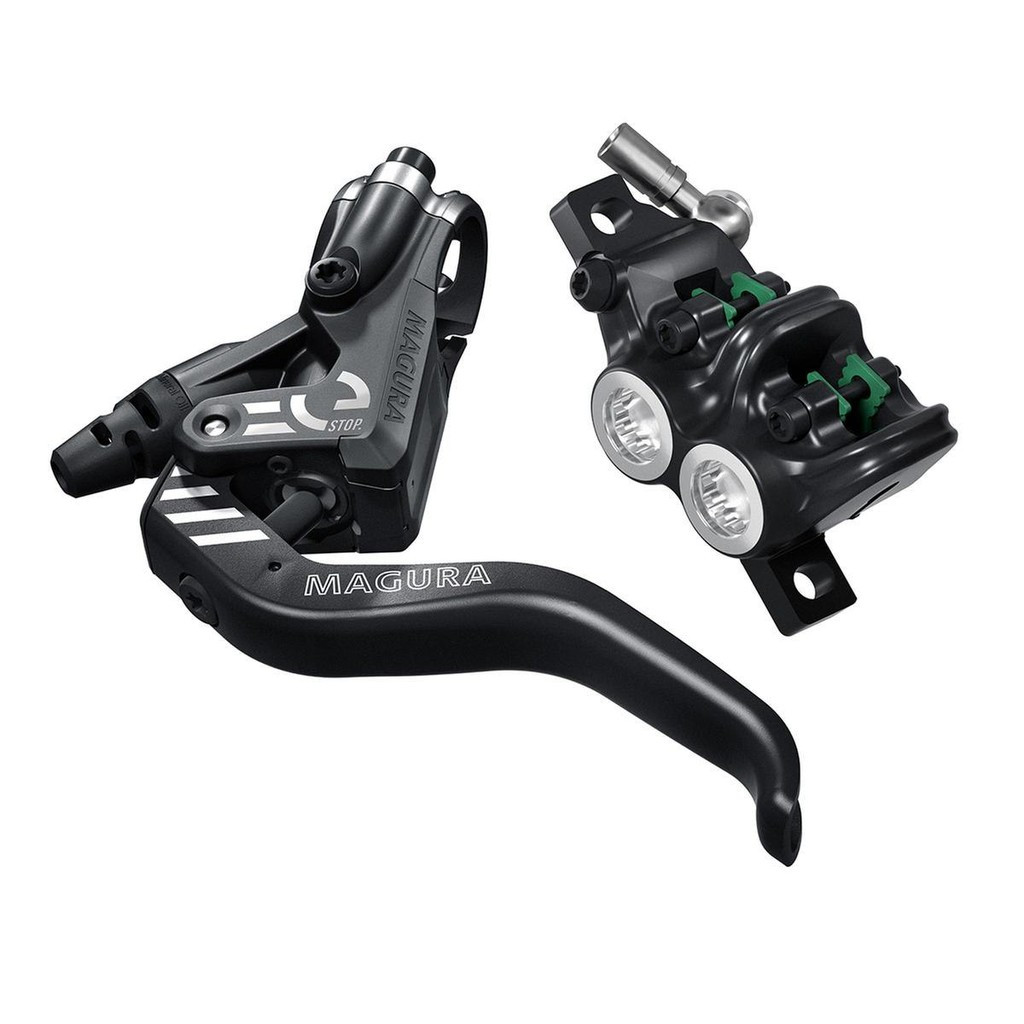

Magura MT5 eSTOP Hydraulic Brake One Side

MT5 e-STOP – E-Bike Optimized
The top model from MAGURA for demanding e-bike use. With powerful 4-piston brake calipers, the MT5 eSTOP offers safe performance at high speeds even on heavy e-bikes. The eSTOP system is based on the characteristics of the proven MT series and, in combination with the SPORT pads and the MDR-C or MDR-P brake discs, provides even greater braking force and stability.

Features:
Ergonomic, 2-finger, aluminum brake lever.
Carbotecture® housing & handlebar clamp
Adjustable lever reach All-in-one
4-piston brake caliper with banjo
MagnetiXchange brake pistons for easy brake pad replacement
Suitable for E-Bikes up to 25km/h
Recommended brake disc: MDR-P 203/220mm

Magura eSTOP – 3 Parts – One Perfect System
The eSTOP system consists of 3 components: the eSTOP brake models, optimized brake discs and the new SPORT brake pad. All components are perfectly matched to each other and thus offer maximum performance for the higher demands of e-bikes. MDR-C and MDR-P brake discs
Optimized for use on e-bikes, MAGURA presents two new brake discs with increased performance and stability and reduced vibration at the same time.
The new MDR-C brake disc is the low-cost all-rounder in the MAGURA E-Bike Optimized portfolio – whether on the city, trail or e-bike. An additional stiffening element above the 6-hole mounting reduces vibration during braking and thus noise. In addition, it has better heat resistance and stability.
With the MDR-P, MAGURA presents a brake disc for performance-oriented riders and tough applications – from downhill to e-bikes and heavy load bikes. The two-piece disc saves weight compared to the MDR-C and is also available in a diameter of 220 mm for the first time. A special feature of the two-piece disc is the patented gearing of the outer and inner ring (Dovetail Interlink technology). The gearing provides additional support on the inner ring when the outer ring expands thermally. In contrast to floating discs, the torque is transmitted over the entire surface instead of only via the rivets. The result is increased rigidity of the brake disc and particularly direct heat dissipation under continuous load. Thanks to the new technology, the MDR-P is the strongest brake disc in the MAGURA portfolio and yet offers low weight and reduced vibration, perfect for MTB gravity use.
For the first time the MDR-P is also available in 220 mm diameter. With the same manual force, the 220mm brake disc generates around 10% more braking force than a 203mm model and even 20% more than a 180 mm model. In addition, the higher mass reduces the risk of brake fading and reduces pad wear by 15%. The brake disc reaches the critical temperatures for the lining much later. With the new MDR brake discs, MAGURA offers a total of five different brake discs. The MAGURA #customizeyourbrake Buyers Guide helps with the selection and comparison of the respective properties. SPORT brake pads The new organic SPORT rubbers are suitable for everyday and s
