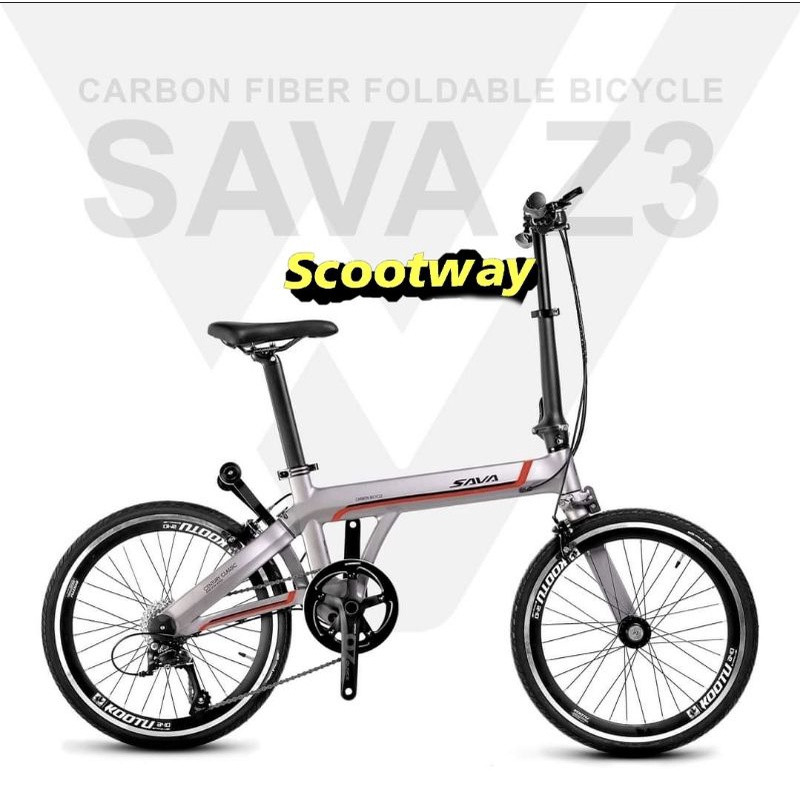

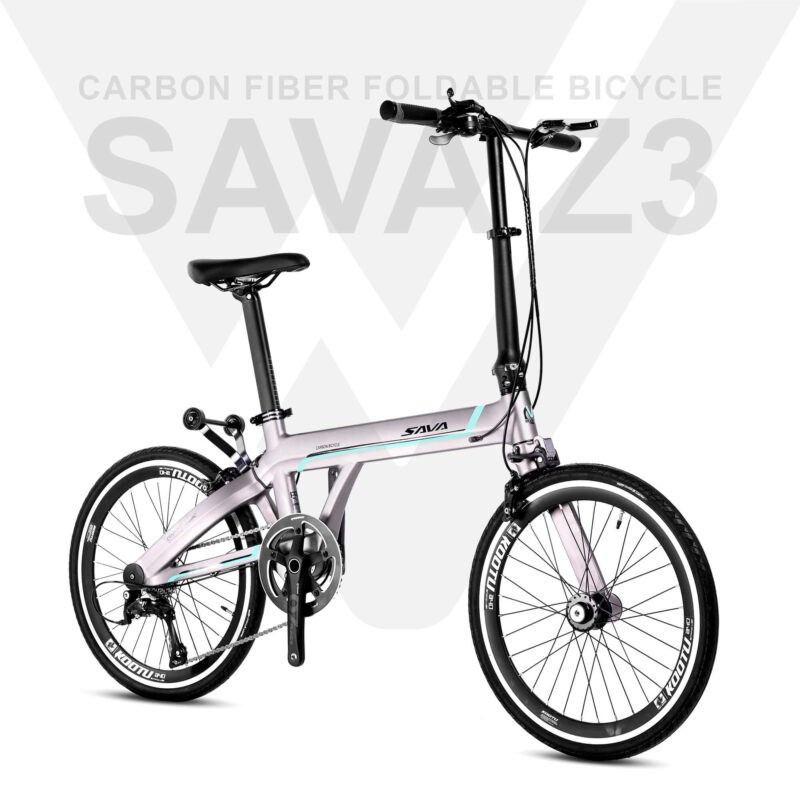

SAVA 20″ Z3 9s Single Arm Carbon Folding Bike

# 5 Years Warranty against manufacturer's defects on FRAME and FORKS, 6 Months Warranty against manufacturer's defects on non-consumable parts/components.

When all the bicycle fans are so indulged with the folding bike, the SAVA now brings you the all-new 3 folding mechanics design – Z3 Carbon Single Arm Folding Bike.

This dream-like folding bicycle has been designed for three years and finally launched at the end of 2020. Minimotors are so proud to share with our fans.

The first 3 folding single arm bikes and only 10.6 kg in the world. Other than that, it comes with a very user-friendly design. As you know Shimano Sora R3000 is a common group set in SAVA brands.

SAVA Z3
Colour
Grey Green, Grey Red
Carbon Fiber
Frame
Weight (kg)
10.6
Suitable Height (inch)
155 – 175 cm
Product Size
147 (l) * 115 (h) * 57 (w) cm

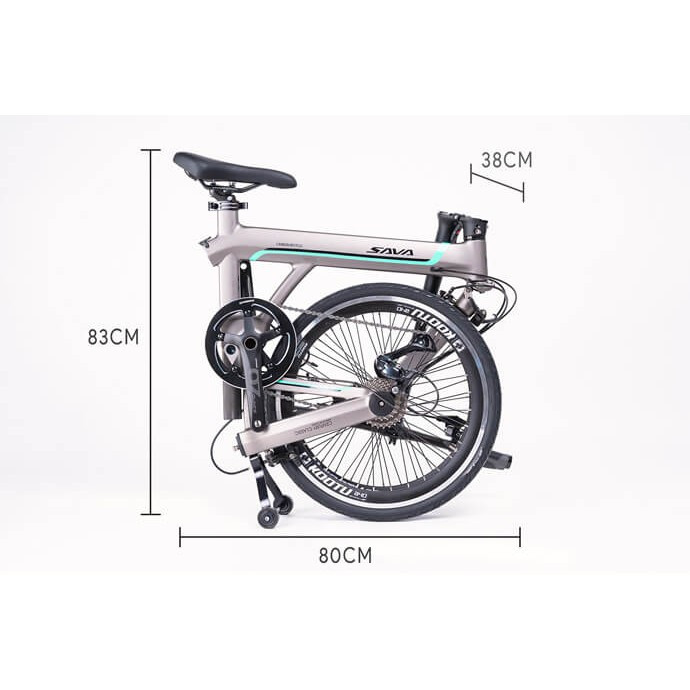

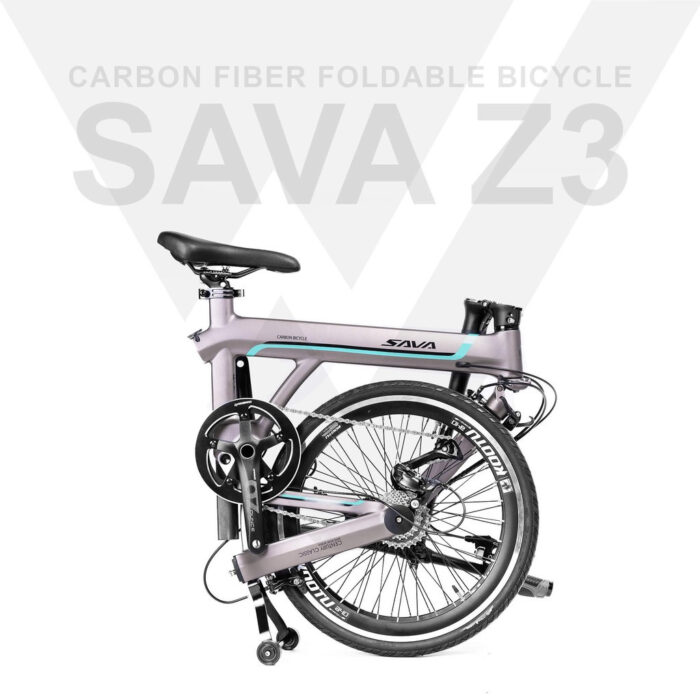

Fold Size
80 (l) * 83 (h) * 38 (w) cm
Frame-Body Carrying System
Frame
20 Carbon Folding Frame
Fork
20 Aluminum Fork B06-FK
Handlebar
Alloy SM-AL-110 ¢22.2 * 25.4 * 560mm * 6° Sandblast BK
Stem
KSL-07+KS07, Two section, Left Side Folding, forward 12°, Sandblast BK
Grip
XH-G120BL 130mm TPR Black Grey
Saddle
YBT-K6822 Black, PUCO Leather
Seat Post
Alloy Sandblast BK, Water Drop Type, 500mm
Headset
Iron + Alloy GH-189, Flat Cover 8mm, 28.6 * 44 * 30
Derailleur / Brake System
Right Shifter
SHIMANO SORA SL-R3000, 9 Speed 2050mm
Rear Derailleur
SHIMANO SORA RD-R3000, GS 9 Speed
Left Brake Lever
TEKTRO, CL525F-RS Hybrid Brake, 2 Finger Lever Blade, Aluminum ED with Bell, Rear Brake
Right Brake Lever
TEKTRO, CL520F-RS Hybrid Brake, 2 Finger Lever Blade, Aluminum ED Black, Front Brake
Front Brake
WINZIP, WB-P401DG F, Aluminum ED/458, F30*18
Rear Brake
WINZIP, WB-P420DG R, Aluminum ED/458, F12.8*10.5
Transmission System
Cassette Sprocket
SUNSHINE ROAD-CS-HR9-28, 9 SPEED, 11-28T
Crankset
PROWHEEL OUNCE-245A-TT 45T*170mm
Chain
KMC Z9 /GY/GY/102L/RO/CL566R
Pedal
CNC WQ/R 1 Bearing, 1DU Black Red
Wheelset System
Rim
20 * 1-3/8 (451*40 mm) * 14G * 32H F/V

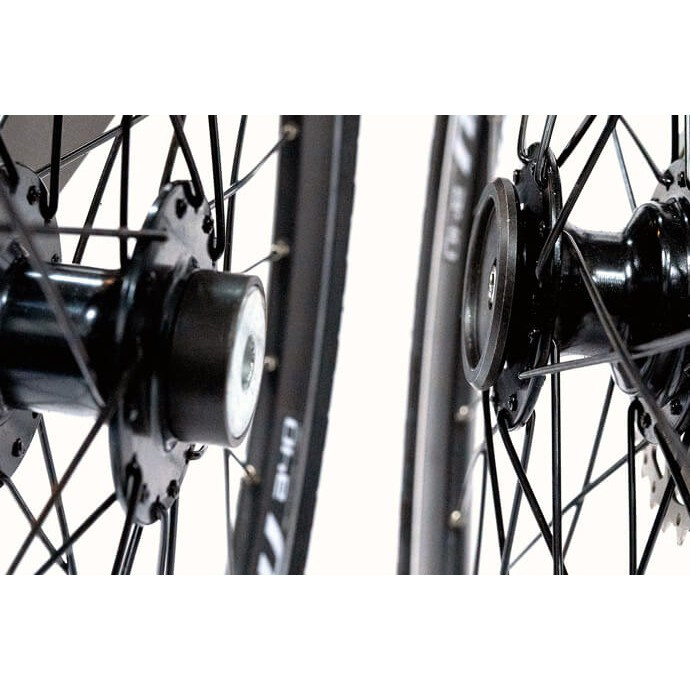

Front Hub
Two bearings 14G*32H Aluminum
Rear Hub
Four bearings 14G*32H Aluminum
Tire
CST (37-451) 20 * 1 3/8 C-1653-1
